Scale your .NET application with Entity Framework and Neon Postgres Read Replicas

Learn how to scale .NET applications with Entity Framework's DbContext and Neon Postgres Read Replicas

Neon read replicas are independent read-only compute instances that perform read operations on the same data as your primary read-write compute. A key advantage of Neon's architecture is that adding a read replica to a Neon project doesn't require additional storage, making it an efficient scaling solution.

This guide demonstrates how to leverage Neon read replicas to efficiently scale .NET applications using Entity Framework Core. You'll learn how to configure your DbContext to work with read replicas, enabling you to optimize your database operations and improve overall application performance.

Prerequisites

A Neon account and a Project. If you don't have one, you can sign up for a Neon account and create a project by following the Getting Started guide.
Basic knowledge of .NET Core
Dotnet SDK installed on your local machine. You can download it from the official .NET website.
Dotnet Entity Framework Core CLI tools installed. You can install them by running the following command:
```
dotnet tool install --global dotnet-ef
```

Build the Todo app

To demonstrate how to use Neon read replicas with Entity Framework Core, we'll build a simple Todo application that uses a Neon database. We'll then update the application to use a read replica for read operations, improving the application's performance and scalability. This is just a simple example to demonstrate the concept, and you can apply the same principles to more complex applications.

Part 1: Build the initial Todo app with a single database

Set up the project

Create a new .NET Core Web API project using the following commands:

dotnet new webapi -n TodoApi
cd TodoApi

Delete the WeatherForecast files

Delete the files WeatherForecast.cs and Controllers/WeatherForecastController.cs as we won't be using them:

rm WeatherForecast.cs Controllers/WeatherForecastController.cs

Install required packages

Install Entity Framework Core Design and Npgsql packages:

Best Practice

Ensure you install package versions that match your .NET version. You can verify your .NET version at any time by running dotnet --version.

dotnet add package Microsoft.EntityFrameworkCore.Design --version 6.0.4
dotnet add package Npgsql.EntityFrameworkCore.PostgreSQL --version 6.0.4

Create the Todo model

Create a new file Models/Todo.cs:

namespace TodoApi.Models
{
    public class Todo
    {
        public int Id { get; set; }
        public string? Name { get; set; }
        public bool IsComplete { get; set; }
    }
}

Create the database context

Create a new file Data/TodoDbContext.cs:

using Microsoft.EntityFrameworkCore;
using TodoApi.Models;

namespace TodoApi.Data
{
    public class TodoDbContext : DbContext
    {
        public TodoDbContext(DbContextOptions<TodoDbContext> options) : base(options) { }
        public DbSet<Todo> Todos => Set<Todo>();
    }
}

Update `appsettings.json` / `appsettings.Development.json`:

Add the connection string:

{
  "ConnectionStrings": {
    "TodoDbConnection": "Host=your-neon-host;Database=your-db;Username=your-username;Password=your-password"
  }
}

Create the TodoController

Create a new file Controllers/TodoController.cs:

using Microsoft.AspNetCore.Mvc;
using Microsoft.EntityFrameworkCore;
using TodoApi.Data;
using TodoApi.Models;

namespace TodoApi.Controllers
{
    [ApiController]
    [Route("api/[controller]")]
    public class TodoController : ControllerBase
    {
        private readonly TodoDbContext _context;

        public TodoController(TodoDbContext context)
        {
            _context = context;
        }

        [HttpGet]
        public async Task<ActionResult<IEnumerable<Todo>>> GetTodos()
        {
            return await _context.Todos.ToListAsync();
        }

        [HttpGet("{id}")]
        public async Task<ActionResult<Todo>> GetTodo(int id)
        {
            var todo = await _context.Todos.FindAsync(id);
            if (todo == null)
            {
                return NotFound();
            }
            return todo;
        }

        [HttpPost]
        public async Task<ActionResult<Todo>> PostTodo(Todo todo)
        {
            _context.Todos.Add(todo);
            await _context.SaveChangesAsync();
            return CreatedAtAction(nameof(GetTodo), new { id = todo.Id }, todo);
        }

        [HttpPut("{id}")]
        public async Task<IActionResult> PutTodo(int id, Todo todo)
        {
            if (id != todo.Id)
            {
                return BadRequest();
            }
            _context.Entry(todo).State = EntityState.Modified;
            await _context.SaveChangesAsync();
            return NoContent();
        }

        [HttpDelete("{id}")]
        public async Task<IActionResult> DeleteTodo(int id)
        {
            var todo = await _context.Todos.FindAsync(id);
            if (todo == null)
            {
                return NotFound();
            }
            _context.Todos.Remove(todo);
            await _context.SaveChangesAsync();
            return NoContent();
        }
    }
}

This controller defines CRUD operations (Create, Read, Update, Delete) for Todo items using HTTP requests. It uses TodoDbContext to interact with the database.

Update `Program.cs` with the following content:

using Microsoft.EntityFrameworkCore;
using TodoApi.Data;

var builder = WebApplication.CreateBuilder(args);

builder.Services.AddControllers();

builder.Services.AddDbContext<TodoDbContext>(opt =>
    opt.UseNpgsql(builder.Configuration.GetConnectionString("TodoDbConnection")));

builder.Services.AddEndpointsApiExplorer();
builder.Services.AddSwaggerGen();

var app = builder.Build();

if (app.Environment.IsDevelopment())
{
    app.UseSwagger();
    app.UseSwaggerUI();
}

app.UseAuthorization();
app.MapControllers();

if (app.Environment.IsDevelopment())
{
    app.Run("http://localhost:5001");
}
else
{
    app.UseHttpsRedirection();
    app.Run();
}

This code configures the application to use Entity Framework Core with a PostgreSQL database. It registers TodoDbContext with the application's services and sets up the database connection using the connection string from appsettings.json / appsettings.Development.json.

Create Migrations

Run the following commands to create and apply the initial migration:

dotnet ef migrations add InitialCreate
dotnet ef database update

Run the application

Start the application:

dotnet run

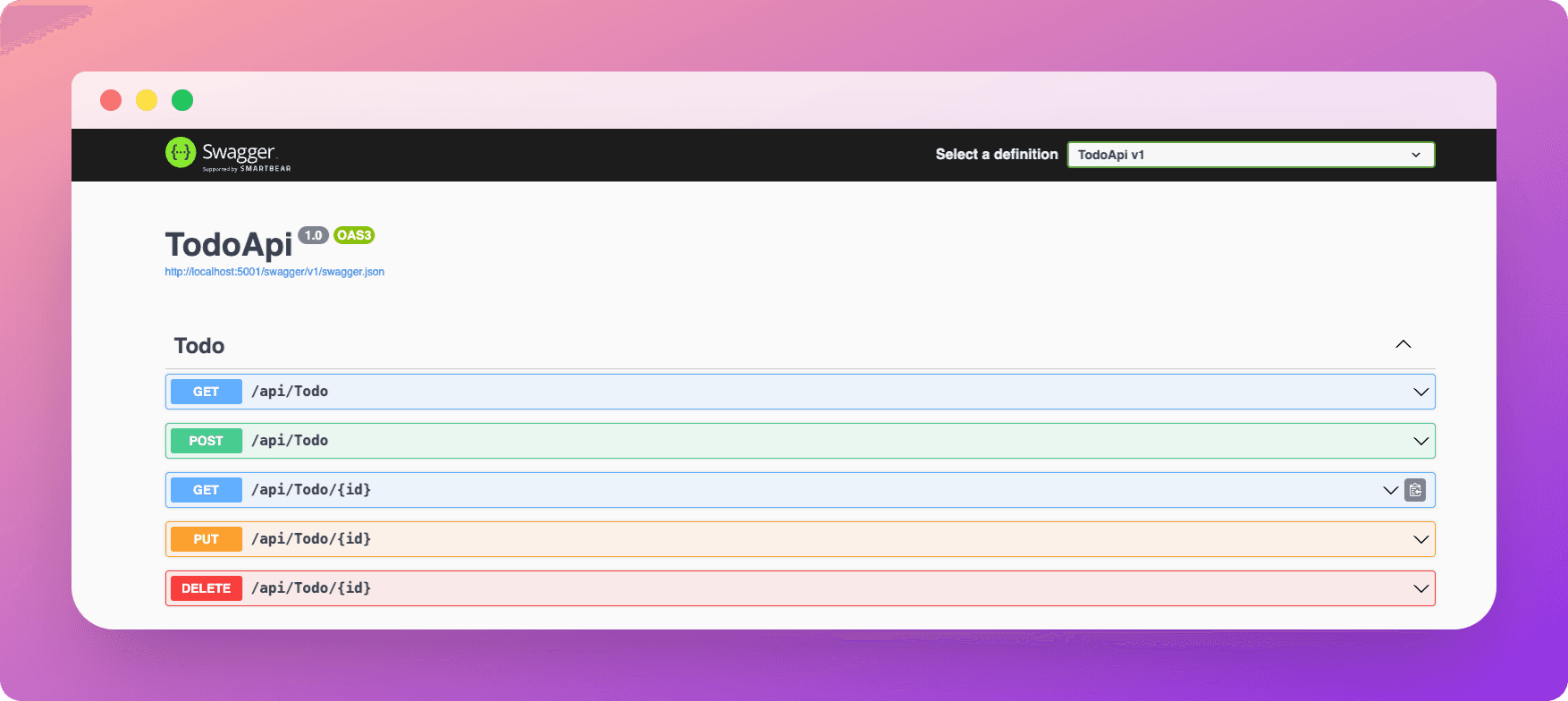

Visit the Swagger UI at http://localhost:5001/swagger to test the API.

Swagger UI

Part 2: Use a read replica for read-only operations

Create a read replica on Neon

To create a read replica:

In the Neon Console, select Branches.
Select the branch where your database resides.
Click Add Read Replica.
On the Add new compute dialog, select Read replica as the Compute type.
Specify the Compute size settings options. You can configure a Fixed Size compute with a specific amount of vCPU and RAM (the default) or enable autoscaling by configuring a minimum and maximum compute size. You can also configure the Suspend compute after inactivity setting, which is the amount of idle time after which your read replica compute is automatically suspended. The default setting is 5 minutes.
note
The compute size configuration determines the processing power of your database. More vCPU and memory means more processing power but also higher compute costs. For information about compute costs, see Billing metrics.
When you finish making selections, click Create.

Your read replica compute is provisioned and appears on the Computes tab of the Branches page.

Navigate to the Dashboard page, select the branch where the read replica compute was provisioned, and set the compute option to Replica to obtain the read replica connection string:

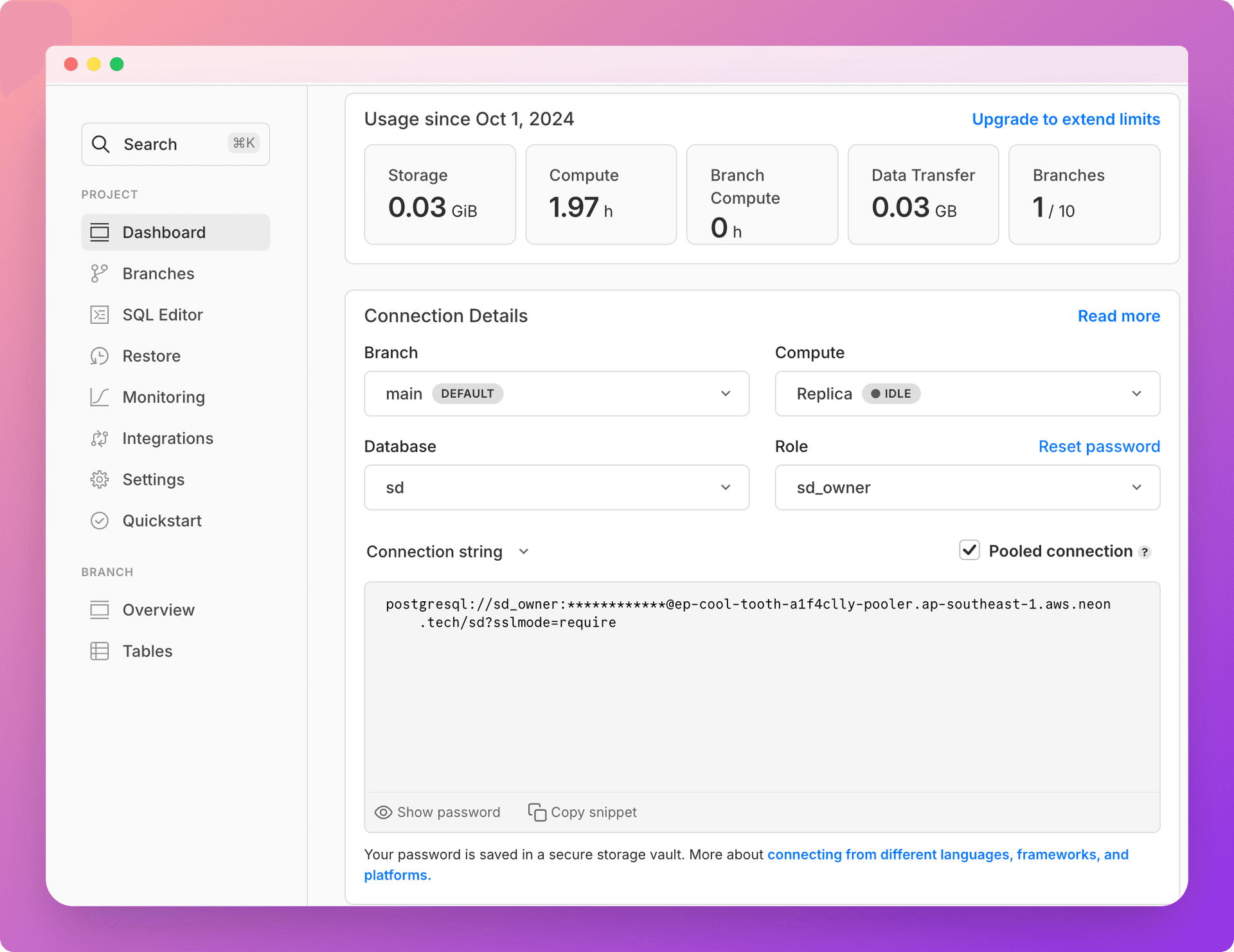

Read replica connection string

Update the TodoDbContext

Modify Data/TodoDbContext.cs to include separate read and write contexts:

using Microsoft.EntityFrameworkCore;
using TodoApi.Models;

namespace TodoApi.Data
{
    public class TodoDbContext : DbContext
    {
        public TodoDbContext(DbContextOptions<TodoDbContext> options) : base(options) { }
        public DbSet<Todo> Todos => Set<Todo>();
    }

    public class TodoDbReadContext : DbContext
    {
        public TodoDbReadContext(DbContextOptions<TodoDbReadContext> options) : base(options) { }
        public DbSet<Todo> Todos => Set<Todo>();
    }
}

Update Program.cs

Modify Program.cs to include both read and write contexts:

using Microsoft.EntityFrameworkCore;
using TodoApi.Data;

var builder = WebApplication.CreateBuilder(args);

builder.Services.AddControllers();

builder.Services.AddDbContext<TodoDbContext>(opt =>
    opt.UseNpgsql(builder.Configuration.GetConnectionString("TodoDbConnection")));
builder.Services.AddDbContext<TodoDbReadContext>(opt =>
    opt.UseNpgsql(builder.Configuration.GetConnectionString("TodoDbConnectionRead")));

builder.Services.AddEndpointsApiExplorer();
builder.Services.AddSwaggerGen();

var app = builder.Build();

if (app.Environment.IsDevelopment())
{
    app.UseSwagger();
    app.UseSwaggerUI();
}

app.UseAuthorization();
app.MapControllers();

if (app.Environment.IsDevelopment())
{
    app.Run("http://localhost:5001");
}
else
{
    app.UseHttpsRedirection();
    app.Run();
}

Update `appsettings.json` / `appsettings.Development.json`

Add the read replica connection string:

{
  "ConnectionStrings": {
    "TodoDbConnection": "Host=your-neon-primary-host;Database=your-db;Username=your-username;Password=your-password",
    "TodoDbConnectionRead": "Host=your-neon-read-replica-host;Database=your-db;Username=your-username;Password=your-password"
  }
}

Update the TodoController

Modify Controllers/TodoController.cs to use separate read and write contexts:

using Microsoft.AspNetCore.Mvc;
using Microsoft.EntityFrameworkCore;
using TodoApi.Data;
using TodoApi.Models;

namespace TodoApi.Controllers
{
    [ApiController]
    [Route("api/[controller]")]
    public class TodoController : ControllerBase
    {
        private readonly TodoDbContext _writeContext;
        private readonly TodoDbReadContext _readContext;

        public TodoController(TodoDbContext writeContext, TodoDbReadContext readContext)
        {
            _writeContext = writeContext;
            _readContext = readContext;
        }

        [HttpGet]
        public async Task<ActionResult<IEnumerable<Todo>>> GetTodos()
        {
            return await _readContext.Todos.ToListAsync();
        }

        [HttpGet("{id}")]
        public async Task<ActionResult<Todo>> GetTodo(int id)
        {
            var todo = await _readContext.Todos.FindAsync(id);
            if (todo == null)
            {
                return NotFound();
            }
            return todo;
        }

        [HttpPost]
        public async Task<ActionResult<Todo>> PostTodo(Todo todo)
        {
            _writeContext.Todos.Add(todo);
            await _writeContext.SaveChangesAsync();
            return CreatedAtAction(nameof(GetTodo), new { id = todo.Id }, todo);
        }

        [HttpPut("{id}")]
        public async Task<IActionResult> PutTodo(int id, Todo todo)
        {
            if (id != todo.Id)
            {
                return BadRequest();
            }
            _writeContext.Entry(todo).State = EntityState.Modified;
            await _writeContext.SaveChangesAsync();
            return NoContent();
        }

        [HttpDelete("{id}")]
        public async Task<IActionResult> DeleteTodo(int id)
        {
            var todo = await _writeContext.Todos.FindAsync(id);
            if (todo == null)
            {
                return NotFound();
            }
            _writeContext.Todos.Remove(todo);
            await _writeContext.SaveChangesAsync();
            return NoContent();
        }
    }
}

Did you know?

You can use dotnet-ef migrations even with multiple db contexts. You can specify the context to use by passing the --context option to the dotnet ef command.

The Todo API is now set up to use separate read and write contexts, leveraging Neon's read replica feature. Read operations (GET requests) will use the read replica, while write operations (POST, PUT, DELETE) will use the primary database.

You can find the source code for the application described in this guide on GitHub.

Read Replicas in .NET EF
Use read replicas with Entity Framework Core

Conclusion

This setup allows you to distribute your read load across one or more read replicas while ensuring that all write operations are performed on the primary database. Monitor your application's performance and adjust the number of read replicas as needed to handle your specific load requirements. With Neon, you can quickly scale out with as many read replicas as you need.

Need help?

Join our Discord Server to ask questions or see what others are doing with Neon. Users on paid plans can open a support ticket from the console. For more details, see Getting Support.
